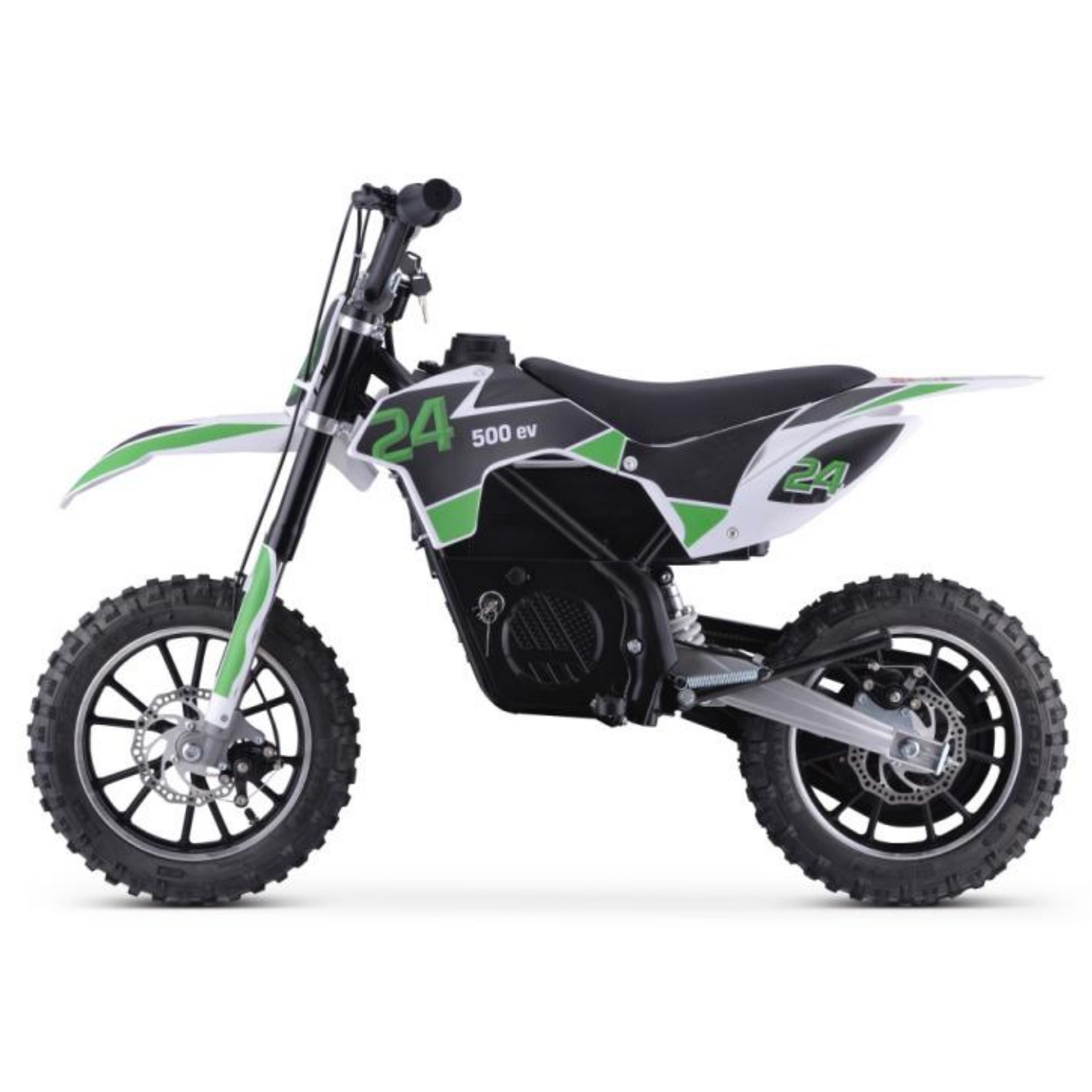

| Vehicle Model name: FR5DEB |
| Engine Type: NEODYMIUM MAGNET MOTOR |
| Fuel Type: Electric Model |
| Transmission: 10, 16, 25KPH (3 speeds, selectable with key lock) |
| Drive Train: Chain drive |
| Gear Ratio: 80/11 |
| Max. Power: 500W |
| Suspension/Front: Hydraulic, Conventional |
| Suspension/Rear: Mono Shock |
| Brakes/Front: Disc Brake |
| Brakes/Rear: Disc Brake |
| Tires/Front:2.5-10 Knobby Pneumatic |
| Tires/Rear: 2.5-10 Knobby Pneumatic |
| Overall Size (L×W×H): 1245×560×800mm |
| Seat Height: 585mm |
| Wheelbase: 860mm |
| Ground Clearance: 180mm |
| Battery: 24V12AH Lead Acid |
| Charger: AC100~240V, DC24V1.5A, ETL/UL |
| Dry Weight: 30kg |
| Gross Weight: 35KG |
| Max. Load: 68kg |
| Package Size: 1070×330×560mm |
| Max. Speed: ≥25km/h |
| Rims: AL |
| Loading Quantity: 336pcs/40´HQ |
| Certificates: CE, UKCA |
