- High performance brushless DC motor, up to 1000W;
- Reverse with gear;
- High, medium and low third gear speed;
- The seat height is adjusted to exceed 120mm stroke;
- Use High performance rear disc brake;
- Use C & U bearing;
- Use the KMC chain
- High quality alloy rear spindle;
- Wanda/Junkai tires;

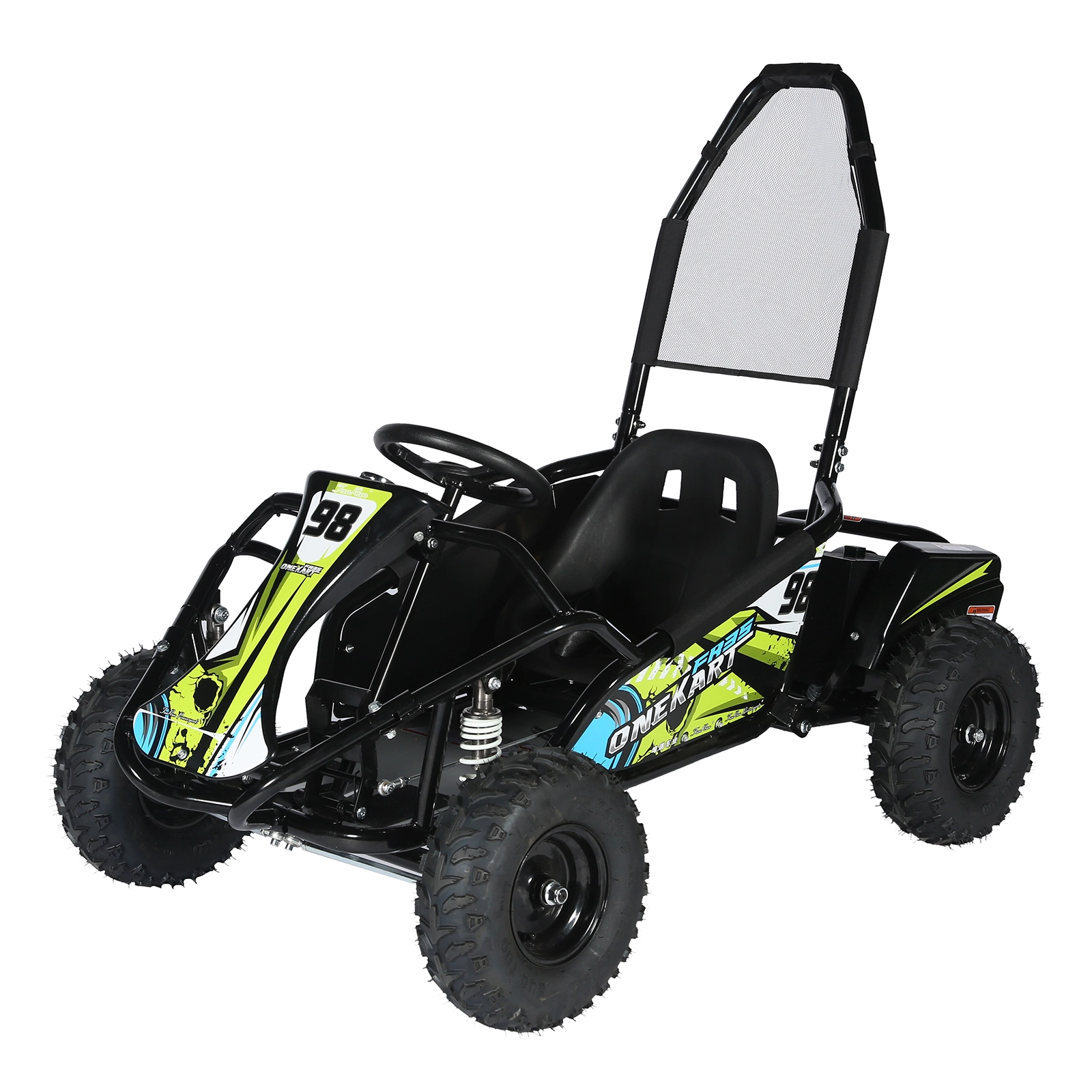

FR5DGK-green(No contains hubcap)
| Vehicle Model name | FR5DGK |
| Engine Type: | Permanent magnet brushless motor |
| Cooling mode | / |
| Number of stroke | / |
| Number of cylinders | / |
| Bore×Stroke: | / |
| Compression Ratio: | / |
| Carburetor: | / |
| Ignition: | / |
| Starting: | / |
| Fuel Type | Electric Model |
| Transmission: | F-N-R |
| Drive Train: | Chain drive |
| Gear Ratio | 11.14：1 |
| Max. Power: | 1KW |
| Max. Torque: | 5.3N.m |
| Engine Oil Capacity: | / |
| Transmission Oil Capacity: | / |
| Suspension/Front: | double shock absorber |
| Suspension/Rear: | Single shock absorber |
| Brakes/Front: | / |
| Brakes/Rear: | Disc Brake |
| Tires/Front: | 14*4.10-6 |
| Tires/Rear: | 14*5.0-6 |
| Overall Size (L×W×H) | 1460×840×1080 |
| Seat Height: (mm) | 200 |
| Wheelbase: (mm) | 924 |
| Ground Clearance: (mm) | 130 |
| Battery: | 48V12AH Lead Acid |
| Charger | AC100~240V, DC56.4V2A,ETL/UL |
| Fuel Capacity: | / |
| Dry Weight: | 93kg |
| Gross Weight: | 101KG |
| Max. Load: | 68kg |
| Package Size: | 1380×830×520mm |
| Max. Speed: | ≥30km/h |
| Rims | Steel |
| Muffler | Steel |
| Loading Quantity: | 110pcs/40´HQ |
| Certificates | CE, UKCA |
| Option Parts: | Rims Cover |
| Full Roll cage | |
| 48V20AH-Lead-acid batteries | |
| 48V20AH-Lithium batteries | |
| Front and back LED lights | |
| Flag |
